Perth's subsurface is dominated by the Bassendean and Spearwood dune systems, where medium-dense to dense sands overlie weakly cemented Tamala Limestone at variable depths—often between 3 and 15 meters below ground level depending on proximity to the coast. Designing a retaining wall here without understanding the cementation profile and groundwater fluctuation is asking for trouble. The water table in the superficial formations can rise to within 2 meters of the surface during winter, generating hydrostatic pressures that many standard designs simply don't account for. Our team has been dealing with these conditions across the Perth metro area, from the Swan Coastal Plain to the Darling Scarp foothills, for projects ranging from residential basement excavations in Subiaco to tiered commercial developments in the CBD. We apply AS 4678:2002 Earth-Retaining Structures in conjunction with site-specific parameters derived from CPT testing and laboratory strength testing on undisturbed limestone core to produce designs that work with the local geology, not against it.
A retaining wall is only as reliable as the drainage behind it—in Perth's winter, neglected hydrostatic pressure turns a $2,500 inspection gap into a $45,000 rebuild.
Approach and scope
Site-specific factors
We were called out to a residential site in Mount Lawley where a 2.8-meter unreinforced masonry wall had rotated outward by nearly 5 degrees over two wet seasons. The original builder had backfilled directly with site sand and installed no drainage aggregate, relying on a single slotted ag-pipe that had become clogged with fines within the first year. By the time we assessed it, the wall was retaining saturated sand with a lateral earth pressure coefficient closer to at-rest conditions than active—pushing the structural capacity beyond what the footing could handle. The remediation involved a full reconstruction with a reinforced concrete cantilever wall founded 1.4 meters below finish grade into undisturbed Bassendean Sand, a 300 mm wide chimney drain connected to a properly graded subsoil drainage system, and soil anchors installed at 2-meter centers to lock the stem into competent material. This scenario repeats itself across Perth's older suburbs where pre-AS 4678 walls were built without geotechnical input. Wall failure mechanisms we commonly observe include base sliding on saturated clay lenses, rotational failure through pinnacled limestone, and bearing capacity failure where footings were sized for assumed rather than tested soil strengths.
Relevant standards
AS 4678:2002 Earth-Retaining Structures (design and construction requirements), AS 1726:2017 Geotechnical Site Investigations (subsurface characterization for wall design), AS/NZS 1170.0:2002 and AS 1170.4:2007 (structural design actions, earthquake actions in Australia), AS 3600:2018 Concrete Structures (reinforced concrete wall stem and footing design), AS 5100.3:2017 Bridge Design – Foundations and Soil-Supporting Structures (partial factors)
Related technical services
Gravity and Cantilever Wall Design

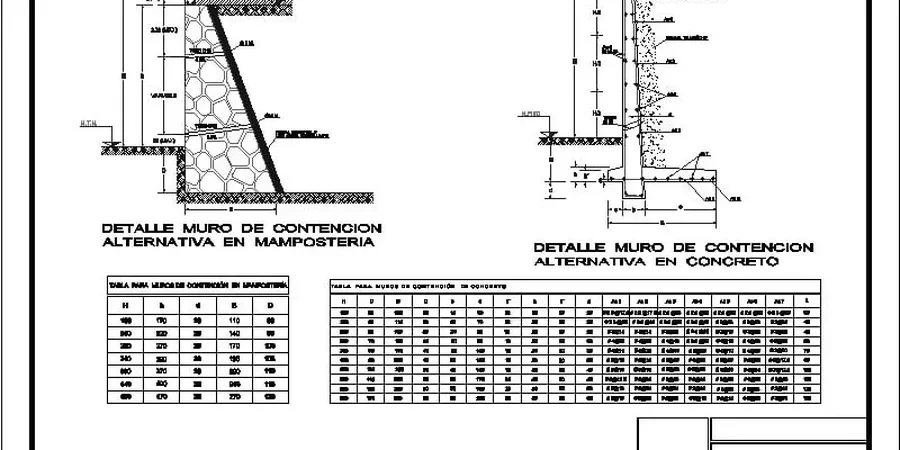

Full structural and geotechnical design of mass concrete, segmental block, and reinforced concrete cantilever walls up to 6 meters retained height. We calculate active and at-rest earth pressures using Coulomb or Rankine methods calibrated to site-specific shear strength parameters from direct shear or triaxial testing. Each design package includes overturning, sliding, and bearing capacity checks per AS 4678, along with global stability analysis using limit equilibrium software where slopes are present above or below the wall.
Anchored and Soil-Nailed Wall Systems
For deep excavations and constrained sites in Perth's inner suburbs—think basement construction in Highgate or Northbridge with zero lot-line setbacks—we design temporary and permanent anchored walls. The design covers anchor bond length verification in Tamala Limestone, corrosion protection per AS 4678 Appendix D, and staged excavation sequencing to limit wall deflections. We specify proof load testing and lock-off procedures for every anchor and supervise the initial installation cycles to validate design assumptions against actual ground response.
Typical parameters
Top questions
What does AS 4678 require for retaining wall drainage in Perth's sandy soils?
AS 4678 Clause 6.4 mandates that all earth-retaining structures include a drainage system capable of dissipating hydrostatic pressure to a level the wall can structurally accommodate. In Perth's Bassendean and Spearwood sands, this typically means a continuous drainage blanket at least 300 mm thick behind the wall stem, constructed from clean 20 mm aggregate wrapped in a non-woven geotextile complying with AS 3706.1. The system must discharge via weep holes at 1.5 to 2.5 meter centers or into a subsoil collector pipe graded to a suitable outlet. We design each system to handle Perth's design rainfall intensity of 70–90 mm/hr for a 1-in-100-year storm event, adjusting for catchment area behind the wall.
How much does a geotechnical retaining wall design cost in Perth?
For a typical Perth residential or light commercial retaining wall with site investigation included, design fees range from AU$1,800 to AU$5,550 depending on wall height, retained material complexity, and whether anchoring or soil nailing is required. A straightforward 1.2-meter gravity wall on proven sand with existing borehole data sits at the lower end, while a 4-meter cantilever wall in estuarine clays requiring triaxial testing, global stability analysis, and construction-phase supervision falls at the upper end. All designs include sealed documentation suitable for council building permit submission.
What site investigation data do you need before designing a retaining wall in Perth?
We need at minimum one borehole or CPT sounding extending to at least twice the retained height below the proposed footing level, or 3 meters minimum, whichever is deeper. This must log soil type, consistency, groundwater level, and any limestone pinnacles or cavities. For walls retaining more than 3 meters or those near property boundaries, we typically specify shear strength testing—either direct shear on reconstituted sand samples or undrained triaxial on cohesive soils—to derive design friction angles and cohesion values rather than relying on conservative published correlations. In areas like the Swan Valley or near the Canning River, we also run consolidation testing on clay layers to estimate long-term settlement under the wall footing.
