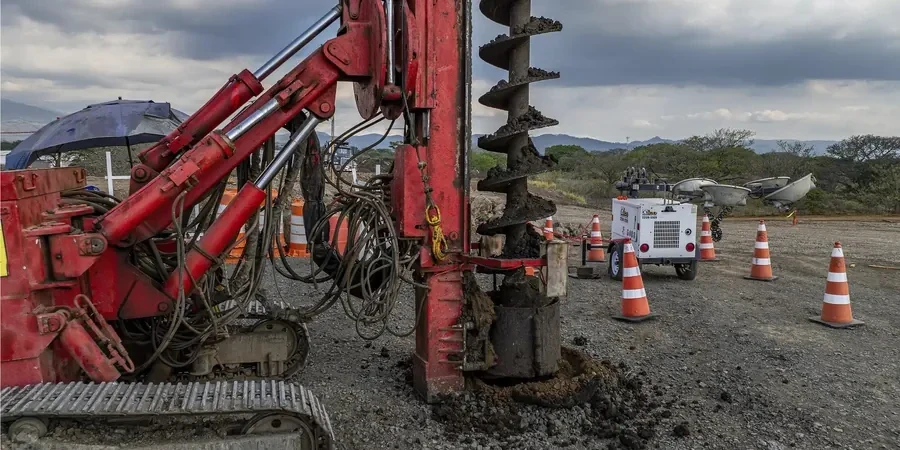

The soil profile across the Perth metro area shifts dramatically between the coastal sand plain and the alluvial clays near the Swan River. In suburbs like Claremont, you might encounter clean quartz sand extending 15 meters deep, whereas just a few kilometers east in Bayswater, the profile shifts to compressible silty clays and peat lenses that create serious settlement challenges. For engineers working on these soft deposits, a standard footing often fails the serviceability checks before construction even begins. Ground improvement becomes necessary, and stone column design offers a reliable technique that reinforces the soil while accelerating drainage. The team at our Perth laboratory has analyzed samples from sites across the metro region, consistently finding that the native Bassendean Sand—when present—provides a competent bearing stratum, but the Guildford Formation clays demand rigorous treatment. We approach each project by correlating site-specific CPT data with laboratory consolidation tests to define the column geometry, aggregate specification, and installation method that will achieve the target stiffness improvement factor. For sites where the granular fill needs precise compaction control, we often combine the design with sand cone density testing to verify post-installation density compliance.
A properly designed stone column grid in Perth's Guildford Formation clays can reduce post-construction settlement by 40-60% compared to untreated ground, while providing a drainage path that accelerates primary consolidation from years to weeks.
Approach and scope
Site-specific factors
Perth sits within a moderate seismic hazard zone with a 10% probability of exceedance in 50 years for peak ground acceleration of 0.09g, as defined in AS 1170.4-2007. While this is lower than eastern Australian cities, the loose saturated sands of the Swan Coastal Plain present a genuine liquefaction risk that stone columns can mitigate through densification and drainage. A site on the north bank of the Swan River in Maylands, where the groundwater sits at just 1.8 meters below ground level, requires careful consideration of column installation technique: wet top-feed vibro-replacement can destabilize the surrounding soil if not properly controlled. The biggest risk in Perth's soft clay zones is underestimating the consolidation settlement under sustained loading—clay layers of the Guildford Formation can have compression indices exceeding 0.4, meaning even a 2-meter embankment can generate up to 80 mm of settlement without treatment. Our laboratory performs incremental load oedometer tests on undisturbed Shelby tube samples to feed consolidation parameters directly into the design model, reducing the uncertainty in the settlement prediction. For sites near the Darling Scarp where colluvial soils mix with residual clays, the heterogeneity demands a denser investigation grid and often a combined approach with footing design for lightly loaded structures on the competent residual soil, reserving stone columns for the deeper alluvial pockets.
Relevant standards
AS 4678-2002: Earth-retaining structures, AS 1726-2017: Geotechnical site investigations, AS 2758.1: Aggregates and rock for engineering purposes, AS 1170.4-2007: Structural design actions – Earthquake actions
Related technical services
Aggregate suitability testing
We evaluate crushed rock aggregate per AS 2758.1 for stone column backfill, including particle size distribution, Los Angeles abrasion, and sulfate soundness. The aggregate must be clean, angular, and resistant to breakdown under vibro-compaction energy.
Pre-treatment soil characterization
Undisturbed sampling with Shelby tubes in soft clay layers of the Guildford Formation, followed by oedometer consolidation tests and unconsolidated undrained triaxial tests to define the pre-improvement stiffness and strength parameters for the Priebe design model.
Post-installation verification testing
Plate load tests on single columns and column groups, zone load tests per AS 4678, and in-situ density testing of the granular mattress placed over the column heads to confirm that the improvement ratio meets the design specification.
Typical parameters
Top questions
What soil conditions in Perth make a site suitable for stone columns?
Stone columns work best in soft cohesive soils with undrained shear strength above 15 kPa—typical of the Guildford Formation clays found across the Swan Coastal Plain. The technique is also effective in loose saturated sands where vibro-replacement provides densification and drainage. Sites with thick peat layers or very sensitive clays may require alternative treatment, and we recommend a CPT investigation to confirm the soil profile before selecting the method.
How is the stone column grid layout determined for a Perth site?
The layout uses the Priebe method to calculate the area replacement ratio needed to achieve the target settlement reduction. Column spacing typically ranges from 1.5 m to 3.0 m on a triangular or square grid, depending on the foundation load and the compressibility of the native soil. Our laboratory provides the consolidation parameters from oedometer testing that feed directly into this analysis.
What does stone column design and testing cost for a typical Perth project?
For a comprehensive stone column design package including site investigation, laboratory testing, design calculations, and post-installation verification, the investment ranges from AU$2,480 to AU$7,930 depending on the site area, number of boreholes, and the extent of laboratory testing required. A smaller residential or light commercial lot falls toward the lower end of this range.
How is seismic performance addressed in stone column design for Perth?
Although Perth's seismic hazard is moderate (AS 1170.4 hazard factor Z = 0.09), the loose saturated sands of the Swan Coastal Plain are susceptible to liquefaction. Stone columns mitigate this through densification during installation and by providing vertical drainage paths that dissipate excess pore pressure during cyclic loading. The design includes a liquefaction triggering analysis using CPT-based methods and specifies a column density sufficient to achieve the target factor of safety against liquefaction.
