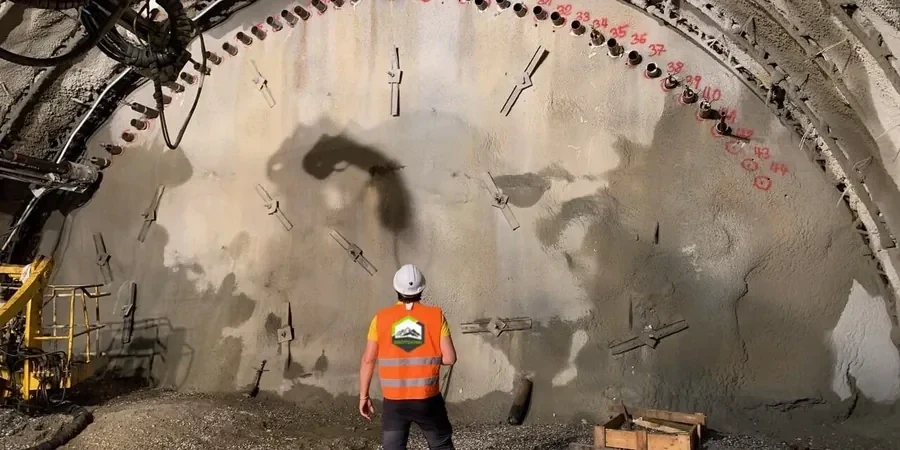

Australian Standard AS 4678:2002 sets the performance benchmarks for earth-retaining structures, and nowhere in the Perth metropolitan area is its application more critical than in the deep Cottesloe Sand and Tamala Limestone formations that define our coastal plain. Deep excavation design in Perth demands a monitoring plan that tracks lateral deflection, ground loss, and pore pressure from the first bucket until backfill is complete. Our team deploys inclinometers, piezometers, and survey prisms on projects ranging from single-basement commercial builds in the CBD to multi-level cut-and-cover stations for METRONET extensions, providing the continuous data stream that allows contractors to adjust shoring sequences before a movement becomes a claim. Because the Guildford Clay lenses that underlie much of the northern suburbs behave very differently from the Spearwood Dune sands south of the river, instrumentation arrays must be designed to the specific stratigraphy encountered in the boreholes, not copied from a standard detail.
In Perth's Tamala Limestone, monitoring must account for solution features: a cavity roof can fail without the gradual warning signs typical of soil excavations.
Approach and scope
Site-specific factors
The geotechnical contrast between the sandy eastern suburbs around Midland and the limestone-rich western coastal strip near Cottesloe dictates fundamentally different monitoring priorities. In Midland, where excavations bottom out in loose to medium-dense Bassendean Sand below a shallow water table, the primary risk is base heave and piping during dewatering; piezometers and extensometers placed at formation level are the critical instruments, and we often combine them with in-situ permeability testing to validate the dewatering drawdown model. Over in Cottesloe, perched groundwater within the Tamala Limestone creates a different hazard: sudden collapse of solution cavities exposed by the cut face. Here, a tight grid of survey prisms on the retaining wall and ground-penetrating radar spot checks on the bench behind the wall form part of a layered monitoring approach. Both scenarios share one common requirement under AS 4678: the monitoring plan must be signed off by a geotechnical engineer with local Perth Basin experience, not a generic instrumentation technician following a manufacturer's manual.
Relevant standards
AS 4678–2002: Earth-retaining structures (design and monitoring performance criteria), AS 1726:2017: Geotechnical site investigations (instrumentation installation standards), AS/NZS 1170.0:2002: Structural design actions – General principles (surcharge and load combinations for monitoring trigger levels)
Related technical services
Deep Excavation Monitoring for Basements and Cut-and-Cover Structures
Full instrumentation suite for multi-level excavations in Perth's CBD and inner suburbs. Inclinometer casings installed behind soldier pile walls, vibrating wire piezometers in the Superficial and Leederville aquifers, automated total station networks with real-time cloud dashboards, and settlement arrays along adjacent footpaths. Designed to meet AS 4678 notification levels and typically integrated with the contractor's hold-point system. Particularly suited to projects where anchors or internal bracing rely on confirmed ground performance before tensioning.
Shoring Performance and Building Protection Monitoring
Targeted monitoring for excavations adjacent to sensitive structures. Crack gauges on neighbouring masonry, tilt meters on party walls, and vibration monitors when rock-breaking in Tamala Limestone is required. We establish pre-construction condition surveys as a baseline and run continuous logging during bulk excavation, reducing to periodic readings during the post-tensioning and backfill phases. This package is frequently specified by local council asset protection officers for projects in Fremantle and Northbridge where zero-tolerance damage policies apply.
Typical parameters
Top questions
What does a typical excavation monitoring plan cost for a single-basement project in Perth's western suburbs?
For a standard single-level basement cut in the Cottesloe Sand with soldier pile shoring and a 3- to 4-month monitoring duration, budgets typically range from AU$1,190 to AU$3,520 depending on the instrument count and reporting frequency. A basic setup with manual inclinometer readings, three piezometers, and a weekly survey prism round falls at the lower end; adding an automated total station with cloud telemetry, vibration monitors, and daily engineer review moves toward the upper end. Larger cut-and-cover civil projects with multiple instrument strings and real-time dashboards are quoted separately based on the construction schedule.
How are movement trigger levels set for a Perth excavation, and what happens when they are reached?
Trigger levels are established during design using the predicted lateral deflection from the shoring analysis, typically a percentage of the retaining wall height plus a settlement component based on the Peck method adjusted for Perth Basin sands. Advisory triggers are commonly set at 50% of the calculated maximum movement, where the engineer reviews data trends. An action trigger at 80% prompts a site meeting, possible adjustment of the excavation sequence, or additional dewatering. A stop-work trigger at 100% of predicted movement halts all activity until the cause is understood and the shoring design is re-evaluated. All triggers and response protocols are documented in the monitoring plan approved prior to breaking ground.
How long must monitoring continue after excavation reaches formation level?
Monitoring continues well past formation level in Perth conditions. Instruments are read during the entire basement construction phase—through blinding concrete, waterproofing, raft slab pouring, and the rising wall pours—because the removal of temporary struts and the progressive loading of the permanent structure can induce secondary movements. Piezometers remain active until the permanent dewatering system (if any) is commissioned and stable. For a typical Perth commercial basement, expect 4 to 8 weeks of post-excavation monitoring before the frequency can be reduced, with final instrument abandonment or recovery only after the ground floor slab is cast and the shoring is fully decommissioned.
