Perth's urban expansion from the Swan River colony into the dune systems of the Quindalup and Spearwood formations created a foundation challenge that defines modern geotechnical practice in Western Australia. The Tamala Limestone, with its karstic voids and variable cementation, sits beneath sand sheets across much of the metropolitan area. When excavation depths exceed three metres in these materials, temporary support becomes essential and permanent retention demands a clear understanding of anchor behaviour. Our anchor design methodology addresses both the drained strength parameters of these sediments and the long-term corrosion issues that Perth's coastal humidity introduces. The distinction between active anchors, which are pre-stressed to limit deformation, and passive anchors, which mobilise resistance through ground movement, is critical here because differential settlement in layered sands can compromise structures that a simpler tie-back system might tolerate elsewhere. For projects requiring deeper investigation, we typically combine anchor design with CPT testing to map the limestone pinnacles that can deflect drilling, and specify in-situ permeability tests when groundwater cut-offs influence the free length design.
The variable cementation of Perth's Tamala Limestone means anchor bond capacity can change by 300% over a distance of three metres. Site-specific testing is the only reliable design basis.
Site-specific factors
A 15-storey residential project on Adelaide Terrace encountered a lens of loose, water-bearing sand at 8 metres depth directly above a pinnacled limestone surface. The original anchored secant pile wall design assumed uniform bond stresses across the anchor bond zone, but the first two test anchors failed the creep criterion at 80% of the design load. The issue was traced to grout loss into the sand lens, which left the bond length partially unbonded and concentrated stress on a short segment of the limestone. The solution involved re-designing the anchor inclination to 20 degrees from horizontal, increasing the bond length from 6 to 9 metres, and introducing a post-grouting phase through tube-a-manchette sleeves. This case illustrates a pattern we see across Perth's near-river and coastal projects: the high spatial variability of the Tamala Limestone surface demands conservative bond assumptions until site-specific testing validates the design parameters. Anchors designed without allowance for this variability risk progressive failure of the retention system.
Relevant standards
AS 4678-2002 Earth-retaining structures, AS 1726:2017 Geotechnical site investigations, AS/NZS 1170.0:2002 Structural design actions, AS 1478.2-2018 Chemical admixtures for concrete, mortar and grout
Related technical services

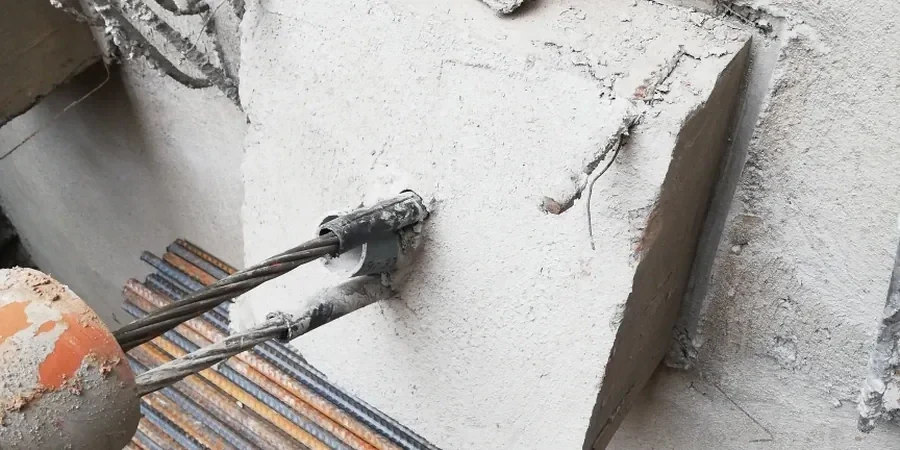

Active Anchor Systems
Pre-stressed bar or strand anchors designed to AS 4678 for cut-and-cover basements, bridge abutments, and tall retaining walls. We specify lock-off loads, free and bond lengths, corrosion protection class, and testing procedures including suitability and acceptance tests. Design accounts for creep potential in calcareous sands, a documented issue in Perth's coastal limestone areas.
Passive Anchor and Soil Nail Design
Self-drilling hollow bar anchors and driven nails for slope stabilisation in weathered rock profiles and sand slopes. These systems develop capacity through grout-ground friction without post-tensioning. We model the soil-structure interaction for shotcrete facings and flexible mesh systems, referencing the Barton-Choubey joint roughness approach for rock mass discontinuities when applicable.
Typical parameters
Top questions
What is the cost range for anchor design on a typical Perth project?
Anchor design packages for a standard retaining wall or basement excavation in Perth geology typically range from AU$1,770 to AU$6,340, depending on the number of anchor rows, the complexity of the ground profile, and the testing requirements. Projects with karstic limestone or high groundwater tables fall toward the upper end because of the additional analysis and instrumentation specification required.
How do you determine the bond length for anchors in Perth's limestone?
Bond length design starts with empirical bond stress values from AS 4678 and published correlations for calcareous sediments, but we rely on sacrificial anchor testing at the start of construction. The test anchor is loaded to failure or 150% of design load, and the measured bond stress is applied to the production anchors with a safety factor of 2.0 on the ultimate value. This approach accounts for local variations in cementation and void presence.
Do you design both temporary and permanent anchors?
Yes, we design both categories. Temporary anchors typically have a design life of up to two years and use single corrosion protection. Permanent anchors require double corrosion protection per AS 4678 Class I, with corrugated sheathing, heat-shrink sleeves, and epoxy-coated bar or encapsulated strand. Perth's proximity to the coast means we often specify the higher protection class even for structures beyond the immediate marine influence zone.
What creep criteria do you apply for anchor acceptance testing?
We apply the creep acceptance limits from AS 4678 Appendix D, which require a creep rate of less than 2 mm per logarithmic time cycle during the 60-minute proof load hold. In calcareous sands, creep behaviour can be more pronounced than in silica sands, so we often extend the hold period to 90 minutes on the first production anchors to confirm that the creep rate is stabilising rather than accelerating.
